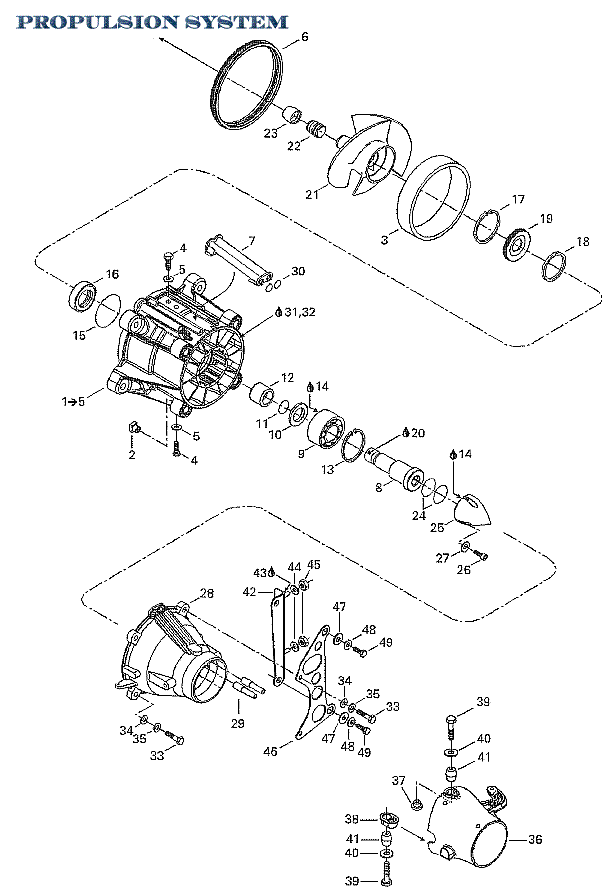

1 |
Impeler housing ass'y |
2 |
Square nut M8 |
3 |
Wear ring |
4 |
Hex. plastite screw #10 x 3/8" |
5 |
Flat washer M5 |
6 |
Seal |
7 |
Water outlet |
8 |
Impeller shaft |
9 |
Angle bearing |
10 |
Spacer |
11 |
O-ring |
12 |
Shaft sleeve |
13 |
Circlip |
14 |
Jet pump bearing grease, 110 g |
15 |
O-ring |
16 |
Oil seal |
17 |
Circlip |
18 |
Spacer |
19 |
Oil seal |
20 |
Loctite 767, antiseize lubricant, 8 oz |
21 |
Impeller |
22 |
Impeller boot |
23 |
Impeller ring |
24 |
O-ring |
25 |
Impeller cover |
26 |
Socket head screw M6 x 20 (scotch grip) |
27 |
Flat washer M6 |
28 |
Venturi (black) |
29 |
Siphon tube |
30 |
O-ring |
31 |
Loctite, primer N |
32 |
Loctite 518, 50 ml |
33 |
Hex. screw M8 x 50 (scotch grip) |
34 |
Flat washer M8 |
35 |
Helical lock |
36 |
Steering nozzle |
37 |
Venturi bushing |
38 |
Plastic bushing |
39 |
Hex. screw M8 x 30 (scotch grip) |
40 |
Flat washer |
41 |
Steering nozzle sleeve |
42 |
Bracket |
43 |
Sealant, loctite 5900, 300 ml |
44 |
Flat washer M8 |
45 |
Elastic stop nut M8 |
46 |
Support |
47 |
Flat washer M8 |
48 |
Flat washer |
49 |
Hex. screw M8 x 20 (scotch grip) |
|
